Onboard a Windows device through self-onboarding

In this topic, you will learn how to onboard using the self-onboarding portal, a Windows 10 computer, and a wired or wireless network managed by Portnox™ Cloud.

Authenticate with the self-onboarding portal

In this section, you will learn how to authenticate with the self-onboarding portal using your corporate identity.

  1. Enter the URL of the self-onboarding portal in your browser.

    To learn how to set up the self-onboarding portal and obtain the URL, see the following topic: Set up the self-onboarding portal.

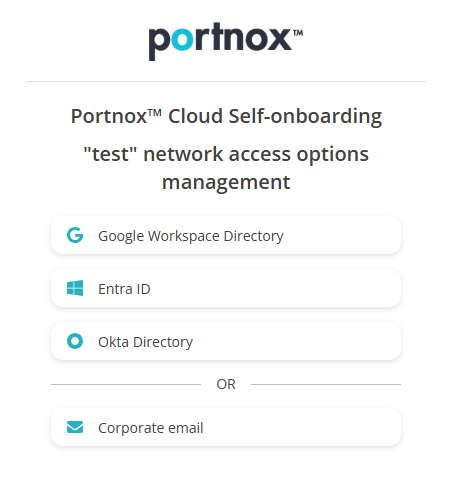

  2. Click on one of the available buttons representing authentication repositories. Then, complete the authorization process as required by your authentication repository.

    Note:
    The buttons available on this page will depend on the authentication repositories integrated with your Portnox Cloud. It is very likely that your organization will only use one of them. The Corporate email option is available only if you configured the self-onboarding portal to allow end-users to use and create Portnox accounts using the self-onboarding portal.
    1. Optional: If the Corporate email option is available, and you want to use a Portnox account to authenticate with the self-onboarding portal, click on the button, enter your email address in the Email field, and then click on the Sign In button. Then, check your email account. You will receive a code via email. Copy the code, paste it in the Activation code field, and click on the Confirm button.

  3. In the Select your device’s operating system field, select the Windows option.
  4. Continue with the next sections depending on your requirements.

Get and import the certificate

In this section, you will learn how to get the certificate issued by Portnox Cloud for your Windows machine and how to import it into the operating system.

Note:
You only need to obtain a certificate if your group in Portnox Cloud is set to use certificate-based authentication. If your group does not use certificates, you only need to configure the network adapters, either automatically or manually.

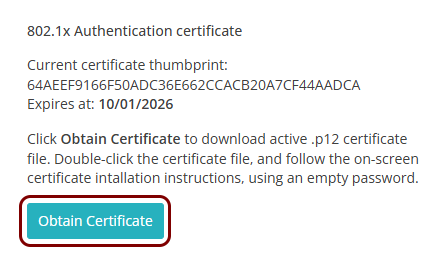

  1. Click on the Obtain Certificate button to download the certificate.

  2. Double-click on the downloaded certificate file (for example, kosh.p12) to install it:
    1. In the Certificate Import Wizard, select the Current User option and click on the Next button.

    2. In the File to import step, click on the Browse button to select the downloaded certificate file, and click on the Next button.

    3. In the Private key protection step, keep the Password field empty and click on the Next button.

      You can select the advanced option checkboxes as needed.

    4. In the Certificate Store step, select the Automatically select the certificate store based on the type of certificate option and click on the Next button.

    5. In the final step of the wizard, click on the Finish button to confirm your choices.
    6. In the Security Warning window, click on the Yes button.

Configure the wireless network adapter

In this section, you will learn how to use the self-onboarding portal to automatically configure the wireless network adapter (Wi-Fi) on your Windows machine.

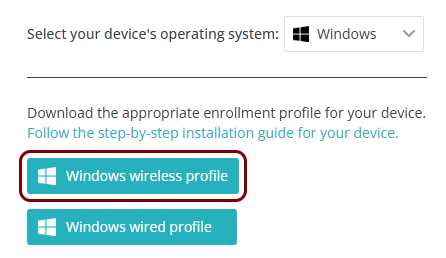

  1. Click on the Windows wireless profile button.

  2. Double-click on the downloaded ProfileInstaller.exe file.

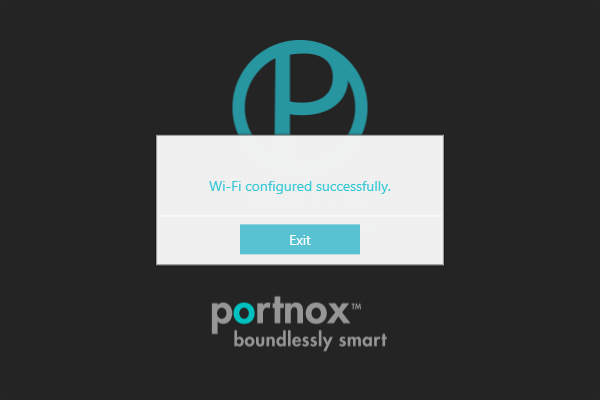

    Windows configures your wireless adapter.

  3. In the Windows Notification Area (System Tray), click on the network icon to open the list of available Wi-Fi networks, and select the network configured in previous steps.

  4. Click on the Connect button.

  5. Optional: If your group is configured for credential-based authentication, Windows shows the Sign in window. Enter your credentials, and click on the OK button.

    You can also enter your identity in the down-level logon name format: domain\user, for example, vorlon.com\kosh.

    If your group is configured for certificate-based authentication, and you downloaded the certificate, the Sign in window is not displayed because it is not necessary.

Optional: Configure the wireless network adapter manually

In this section, you will learn how to configure your wireless network adapter manually to use the certificate that you downloaded earlier.

Important:
You only need to configure the adapter manually if automatic configuration failed. If you successfully configured the adapter using the automatic method described above, skip this section.
  1. Open the Windows 10 Network and Sharing Center (Control Panel > Network and Internet > Network and Sharing Center).
  2. Click on the Set up a new connection or network link.

  3. In the Set Up a Connection or Network window, select the Manually connect to a wireless network option and click on the Next button.

  4. In the Manually connect to a wireless network window, enter the name (SSID) of the network managed by Portnox Cloud in the Network name field and select the WPA2-Enterprise option in the Security type field. Then, click on the Next button.

  5. Click on the Change connection settings link.

  6. In the Wireless Network Properties window, click on the Security tab, in the Choose a network authentication method field, select Microsoft: Smart Card or other certificate, and click on the Settings button.

  7. In the Smart Card or other Certificate Properties window, select the Use a certificate on this computer option. Then, activate the Verify the server’s identity by validating the certificate checkbox. Finally, in the Trusted Root Certification Authorities list, find and activate the DigiCert Trusted Root G4 checkbox (the root CA certificate) and click on the OK button.

    Note:
    For extra security, we recommend that in addition to activating the DigiCert Trusted Root G4 certificate (the root CA certificate) on the Trusted Root Certification Authorities list, you also enter clear-rad.portnox.com in the Connect to these servers field. If so, only certificates that have this domain name in Subject or SAN will be trusted. Do not activate this checkbox leaving the field empty, because this will cause connectivity problems. To learn more about this option, read the following topic: Trusted certificate server names.
  8. Click on the OK button to close the Smart Card or other Certificate Properties window. Click again on the OK button to close the Wireless Network Properties window. Click on the Close button to close the Manually connect to a wireless network window.

    You can do this step later, after you successfully connected to the network.

  9. In the Windows Notification Area (System Tray), click on the network icon to open the list of available Wi-Fi networks, and select the network configured in previous steps.

  10. Click on the Connect button.

Result: Your Windows 10 computer is connected to a Wi-Fi network managed by Portnox Cloud.

Configure the wired network adapter

In this section, you will learn how to use the self-onboarding portal to automatically configure the wired network adapter (Ethernet) on your Windows machine.

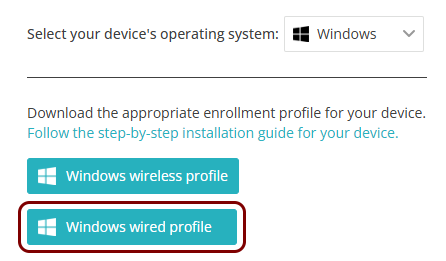

  1. Click on the Windows wired profile button.

  2. Double-click on the downloaded ProfileInstaller.exe file.

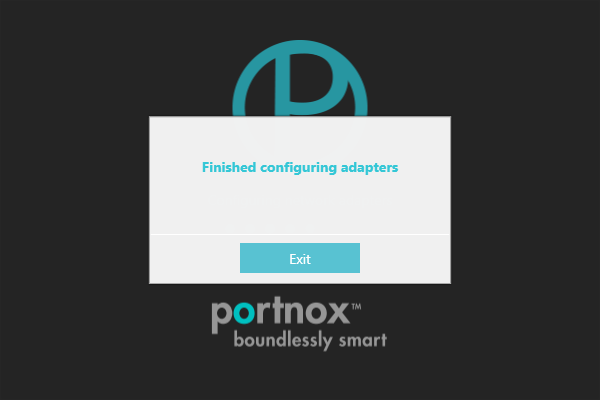

    Windows configures your wired adapter.

  3. Optional: If your group is configured for credential-based authentication, when you connect the adapter to the network, Windows shows the Sign in window. In the Sign in window, enter your credentials, and click on the OK button.

    You can also enter your identity in the down-level logon name format: domain\user, for example, vorlon.com\kosh.

    If your group is configured for certificate-based authentication, and you downloaded the certificate, the Sign in window is not displayed because it is not necessary.

Note:
If you are having trouble with automatic network configuration, try manually configuring the network: Onboard a Windows device to a wired network with credentials.

Optional: Configure the wired network adapter manually

In this section, you will learn how to configure your Windows wired network adapter manually to use the certificate that you downloaded earlier.

Important:
You only need to configure the adapter manually if automatic configuration failed. If you successfully configured the adapter using the automatic method described above, skip this section.
  1. Open the Windows 10 Network and Sharing Center window (Control Panel > Network and Internet > Network and Sharing Center) and click on the Change adapter settings option.

  2. Right-click on the Ethernet connection that represents the adapter connected to the wired network managed by Portnox Cloud and select the Properties option from the pop-up menu.

  3. In the Ethernet Properties window, click on the Authentication tab and in the Choose a network authentication method field, select Microsoft: Smart Card or other certificate. Then, click on the Settings button.

    Note:
    If there is no Authentication tab, open the Windows Services app, find the Wired AutoConfig service, Start it, and in its Properties, set Startup type to Automatic.
  4. In the Smart Card or other Certificate Properties window, select the Use a certificate on this computer option. Then, activate the Verify the server’s identity by validating the certificate checkbox. Finally, in the Trusted Root Certification Authorities list, find and activate the DigiCert Trusted Root G4 checkbox (the root CA certificate) and click on the OK button.

    Note:
    For extra security, we recommend that in addition to activating the DigiCert Trusted Root G4 certificate (the root CA certificate) on the Trusted Root Certification Authorities list, you also enter clear-rad.portnox.com in the Connect to these servers field. If so, only certificates that have this domain name in Subject or SAN will be trusted. Do not activate this checkbox leaving the field empty, because this will cause connectivity problems. To learn more about this option, read the following topic: Trusted certificate server names.
  5. Click on the OK button to close the Smart Card or other Certificate Properties window. Click again on the OK button to close the Ethernet Properties window.

Result: Your Windows 10 computer is connected to a wired network managed by Portnox Cloud.
